How to cut 3D usrbin plot in flair

[chenjianqi (Jianqi Chen)]

Versions

•

FLUKA:
Flair:
Operating system:

Description

Dear FLUKA experts:

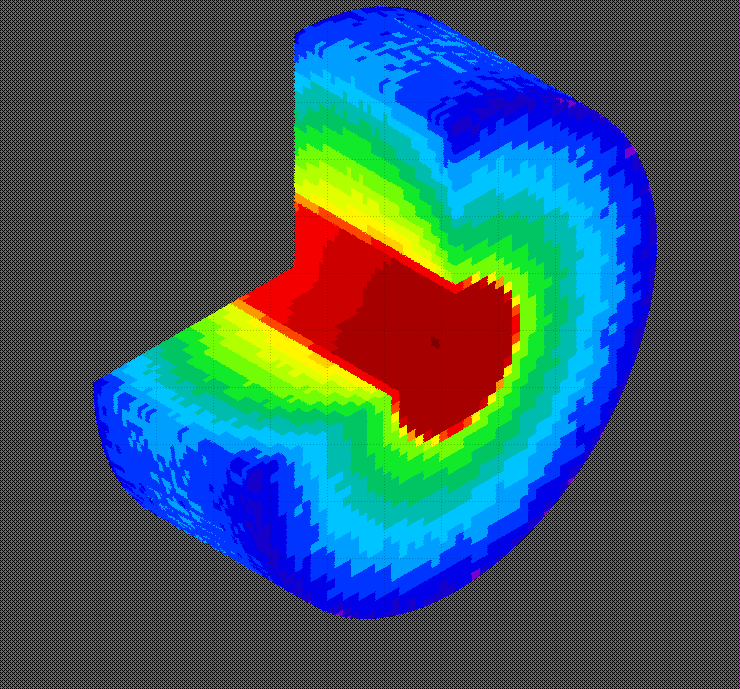

I am wondering how to cut off a quarter of this cylinder, just like the upper figure illustrated in the red square frame .

Input files

backn.inp (30.4 KB)

[ctheis (Chris Theis)]

Hello,

you can do this by using a clipping body. For a complete description of the 3D usrbin plot options (for clipping see pages 36 and following) please see the FARM manual:

Flair-Advanced-Render-Module Manual part 1

Flair-Advanced-Render-Module Manual part 2

Cheers
Chris

[chenjianqi (Jianqi Chen)]

Thanks a lot,Chris！It is worked.
